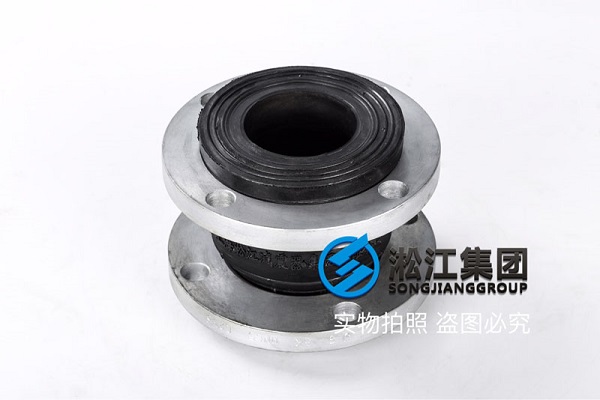

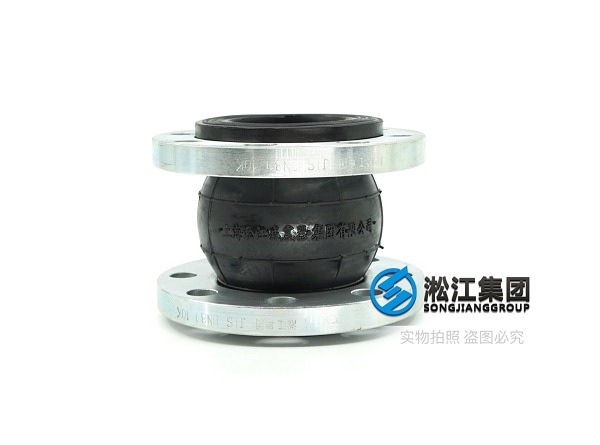

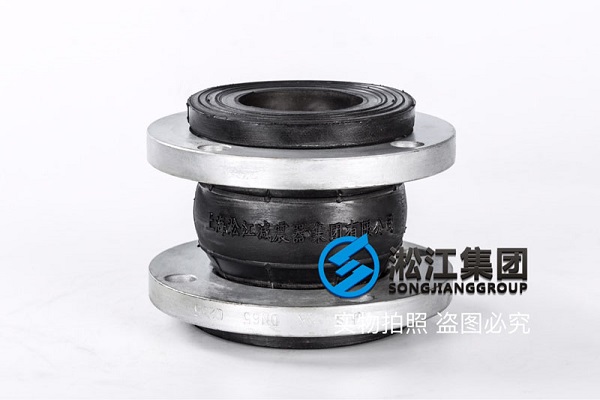

上海淞江减震器集团有限公司介绍：日标5KDN65橡胶膨胀节产品信息，淞江集团为众多客户提供各种法兰标准橡胶膨胀节，以下是DN65单球5K橡胶膨胀节实物拍照，另外我厂还有其他JIS日标法兰橡胶接头产品，包括5k、10k等。
DN65橡胶膨胀节日标法兰参数：安装长度：115mm（130mm、150mm），轴向压缩：12mm，轴向拉伸：6mm，横向位移：10mm，偏转角度：15°，标准：JIS，压力：5K，法兰：碳钢（Q235），介质：普通水。
橡胶膨胀节一般是由两端带橡胶凸缘的光滑波形补偿元件与金属法兰组成。金属法兰常采用松套结构。法兰连接橡胶接头，在工作压力和工作温度较高的（通径200以上、温度70℃以上、工作压力1.5Mpa以上），可选用配有限位装置的法兰橡胶接头。
Shanghai Songjiang shock absorber Group Co., Ltd. introduces: Japanese standard 5kdn65 rubber expansion joint product information, Songjiang group provides various flange standard rubber expansion joint for many customers. The following is the photo of DN65 single ball 5K rubber expansion joint. In addition, our factory also has other JIS Japanese standard flange rubber joint products, including 5K, 10K, etc.
DN65 rubber expansion flange parameters: installation length: 115mm (130mm, 150mm), axial compression: 12mm, axial tension: 6mm, transverse displacement: 10mm, deflection angle: 15 °, standard: JIS, pressure: 5K, flange: carbon steel (Q235), medium: ordinary water.
Rubber expansion joint is generally composed of smooth wave compensation element with rubber flange at both ends and metal flange. Loose sleeve structure is often used for metal flange. Flange connection rubber joint, in the working pressure and temperature is higher (diameter 200, temperature above 70 ℃, working pressure above 1.5MPa), flange rubber joint with limit device can be selected.
